Features a high performance and low cost bipolar stepper motor driver
Has state of the art thermal design
Provides high power density and robust design
Offers 4 micro switches

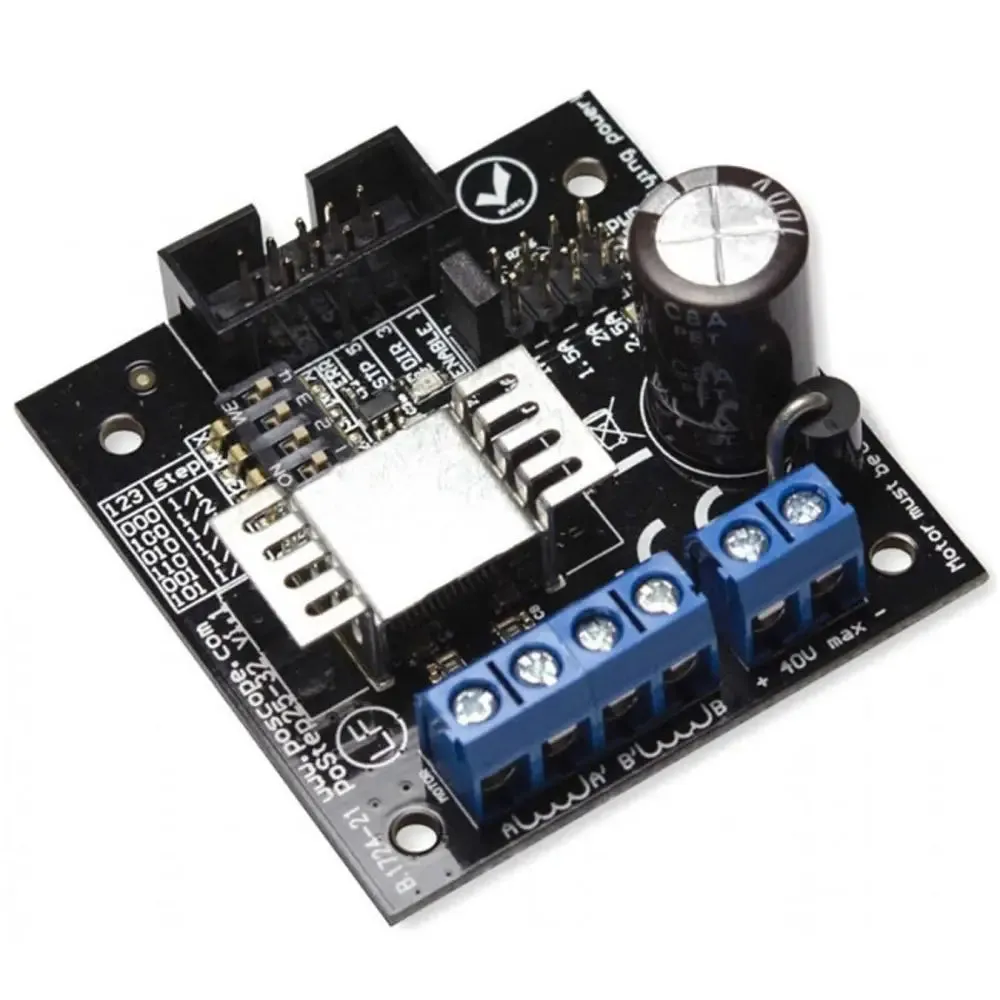

The 10V-30V Bipolar Stepper Motor Driver PoStep25-32 is a high performance, cost effective bipolar stepper motor driver. Firstly the driver incorporates an advanced architecture and surface mount technology. Secondly copper on the printed circuit board is 2 times thicker that in most Printed Circuit Boards. In conclusion PoStep25-32 has state of the art thermal design.
Thick copper and aditional heatsink quarante the best thermal performance and low heating. Low footprint, high power density and robust design ia a key for reliable bipolar stepper motor driving. There are 4 microswitches on the PoStep25-32. Thus, fast and reliable settings for microsteps and decay. Moreover switching between mixed and fast decay and settings between full step an 32 microstep can be made.
1 x 10V-30V Bipolar Stepper Motor Driver PoStep25-32
Size
50 x 52 mm
Phase Current: 0.5 - 2.5 Amps
Compatible: 4, 6, and 8 wire bipolar stepper motors
