Crossing Micro E-nail Controller Features - Updated Model

• Super fast heating - This PID gets up to temperate in around half the time of most other PIDS on the market, including the other Crossing High-Res PID. Always ensure the item you're heating (banger, injector housing etc.) is inside the coil while it heats.
• Now with the ability to switch between Celcius or Fahrenheit! They usually come to us set in celcius.
• Now with 1 degree temperature increments!

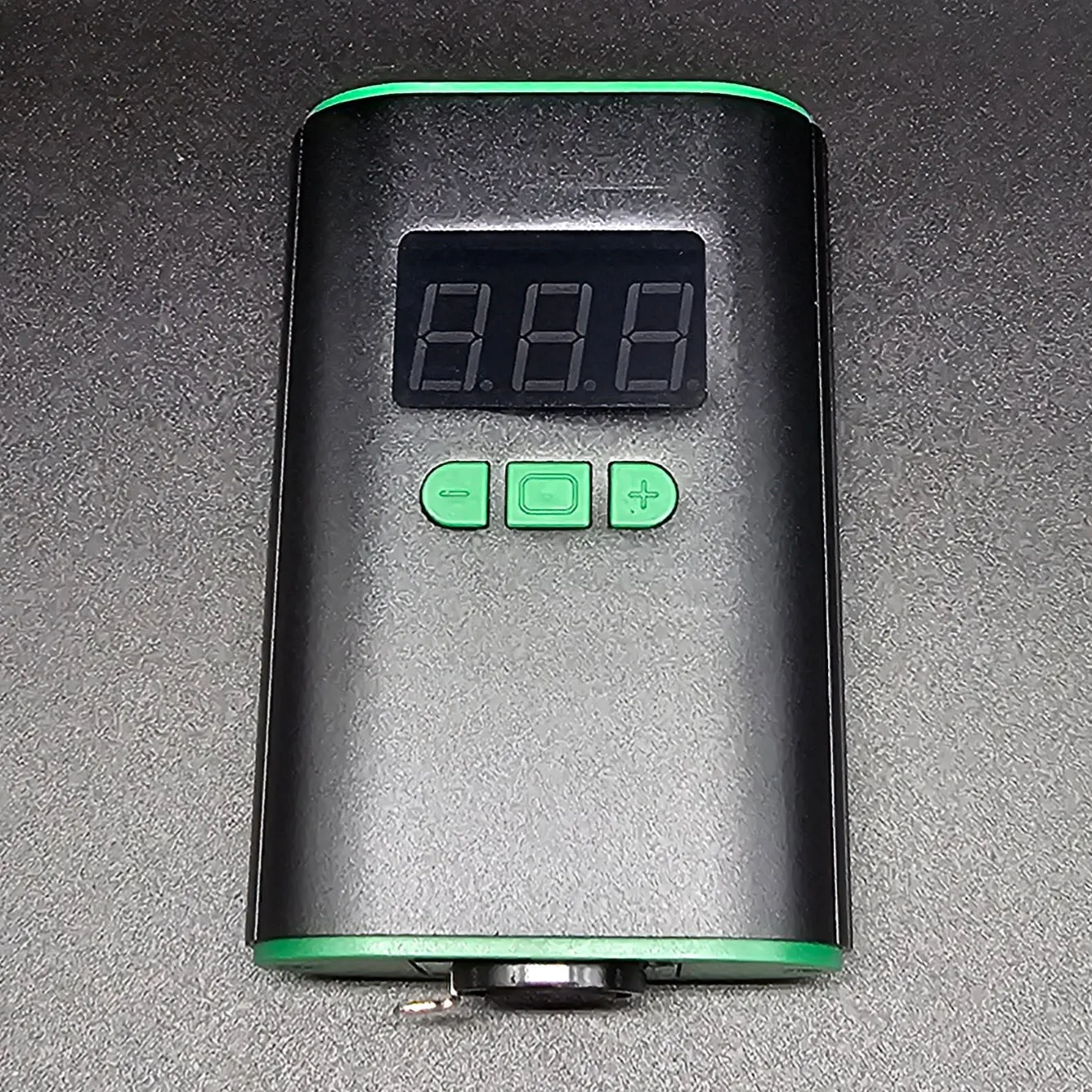

• Large, clear top mounted display - Green
• Big green buttons
• Unlike the High-Resolution PID this PID doesn't display live temperate readings after reaching the set temperature, only the target temperature is displayed
• Small Size - Dimensions 110 x 70 x 35mm
• Adjustable between 0-995F or 0-537C
• Adjustable shut off timer - 1-5 hours or 0 for off
• 220V/110V Coil Compatible

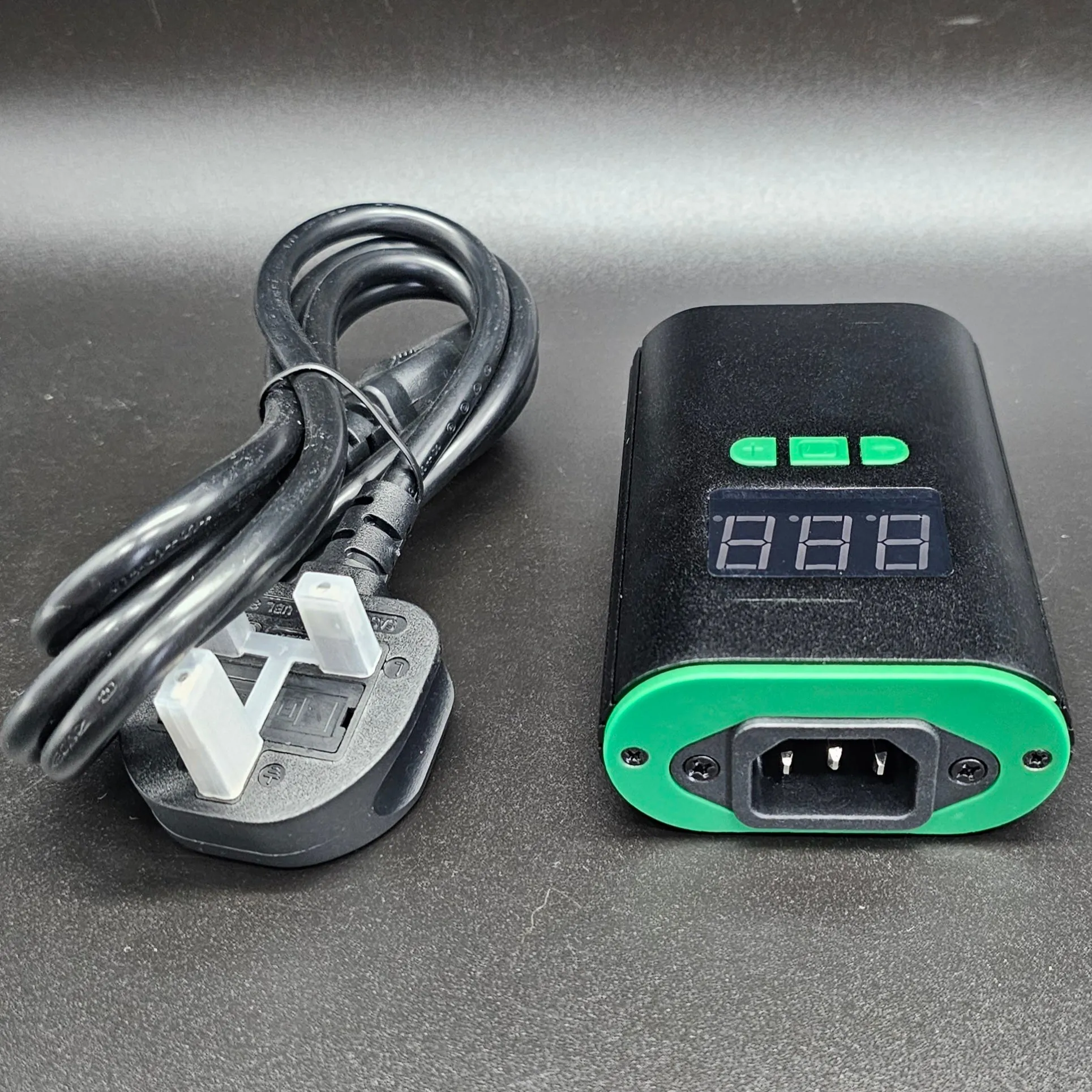

• Includes UK 3-pin 220V plug
• Confirmed compatibility with CH, Auber, Disorderly Conduction (DC) and 710 Coils
• Pin 1 is AC live line, pin 2 is AC zero line, pin 3 is temp positive, then 4 is temp negative and pin 5 is ground

We also have a the Classic  from Crossing which is compatible with the same range of coils but functions a little differently, there is also a

PID Controller Instructions

• Hold the central button for 5 seconds to turn on or off
• Use the /- buttons to adjust the temperature
• When switched on, press the central button five times to access auto-off timer
• Adjust with /- from 0-5. 0 switches the timer off or select 1-5 hours
• Celcius/Fahrenheit - Hold down button for 5 seconds while the controller is switched off. Then press the button again to change between C and F. Press the central button to exit.

Warranty and Certifications

• CE certified
• ROHS certified materials
• 1 Year Warranty
• Warranty covers manufacture defects only, not wear and tear, damage or modified coils.

Please note

• Never mix coils and controllers as they often have different pin-out layouts. Always stick to compatible kit from the same manufacturer to avoid damage to your coil or controller.
• PID controllers come to us bubble wrapped, as such they will be sent out... you guessed it. Bubble wrapped!
• Coils do not come with PID controllers, these need to be purchased separately.
• It is best to avoid switching your setups on and off multiple times a day, heat/cooling cycles cause thermal stress which is the main cause of premature coil death. To prolong their lifespan switch them on and off as infrequently as possible
• Due to the more aggressive heating style of these PID controllers, coils may glow while heating and responding if there there is not a closely fitted banger, metal balls vape housings (etc.) installed in the attached coil
