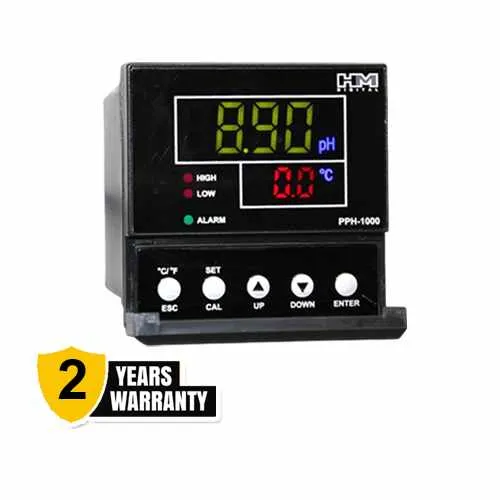

PPH-1000: Single Line pH and Temp Controller
HM Digital is a company known for its high-quality water testing instruments and equipment, including meters for measuring parameters like pH, TDS (Total Dissolved Solids), EC (Electrical Conductivity), and more.
HM Digital gives the user a single-line pH controller ideal for any industrial or commercial system needing to control pH levels. It has a built-in sensor for Automatic Temperature Compensation (ATC).
The results are displayed on a bright 5/8” L.E.D. display. These are unique instruments that combine convenience with accuracy and precision in analysis. The measurement range is from 0 to 14 pH, with a resolution of 0.01 pH.
SPECIFICATIONS:
- Ideal for controlling pH in commercial applications
- 4-20mA output signal
- Digital calibration
- On-screen temperature display
- Fully adjustable relay control
- 2 set points (High and Low) maintain the desired range
- Includes ¾” sensor probe
PRODUCT DESCRIPTION:
- Range: 0.01 – 14.00 pH
- Accuracy: ±0.5% F.S.
- Resolution: 0.01 pH / 0.1°C (0.1°F)
- ATC: Yes (1 – 60˚C)
- Calibration: Digital to any point
- Set Point: On-screen buttons
- Relay Controls: Two (upper and lower limit)
- Alarm: Optional setting
- Display: Bright 5/8” L.E.D. Display
- Probes: 3/4” Electrode, 3 m (9.8 ft.) cable
- Power Source: AC 110V / 220V
- Dimensions: 7.2 x 7.2 x 11.1 cm (2.8 x 2.8 x 4.4 in.)
- Weight: 235g (8.3 oz.)
- HM PH Controller (PPH-1000): Two-Year Limited Warranty
- pH Probe (SP-P10): Six Month Limited Warranty.
